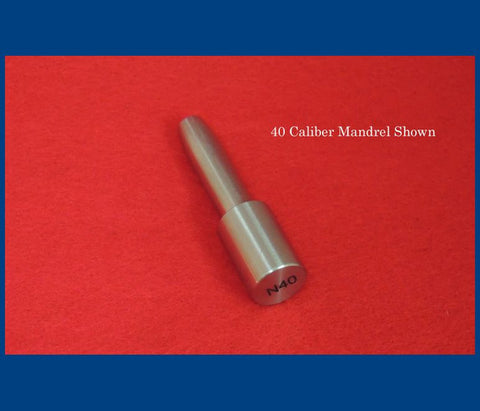

Neck Turning Mandrels - Stainless Steel
Our Neck Turning Mandrels are designed to fit the PMA Tool Neck turners, with a small adapter that will also fit the newer Sinclair turning tool. Our turning mandrels are perfectly matched to our expanding mandrel, simply size first with the expanding mandrel and then you are ready to turn your cases on the turning mandrel in your PMA tool neck turner.
Turning Mandrels are available in the following calibers:
17, 20, 22, 6mm, 25, 6.5mm, 270, 7mm, 30 and 338
If you are doing a lot of turning and why not check out our carbide turning mandrels - they maintain dimensional accuracy over a wide temperature range.
Our mandrels are marked as follows, the numbers represent the calibre:
17 = .177
22 = .224
24 = .243
25 = .257
26 = .264
27 = .270
28 = .284
30 = .308
33 = .338
N30 - N = Neck turning, 30 is calibre, so an N30 is a Neck Turning 30 Calibre
X26 - X = Expanding, 26 is calibre, so an X26, is an expanding .264 (or 6.5mm)
X24X - is a special Neck-Up mandrel to go from 22cal to 6mm in one step, Perfect for necking 220 Russian up to 6mm for PPC
X30X is a special Neck-Up mandrel to go from 6mm to 30cal in one step. Perfect for necking 6BR up to 30 calibers for 30BR.
C24 - C = Carbide Turning, 24 is the caliber, so a C24 is a carbide turning .243 (or 6mm) mandrel.
CX22 - CX = Carbide expanding, 22 is the calibre (.224)
